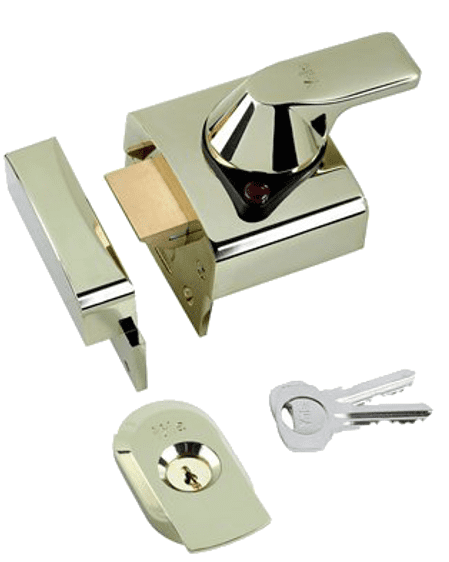

Yale PBS4  British Standard High Security Escape Nightlatch

The Yale PBS4 Nightlatch is designed to replace rim latch locks, and is available with a 40mm backset (door edge to centre of cylinder) to upgrade standard nighlatches. Also available in 60mm backset PBS3 click here. Ideally suited to be fitted on solid  doors, as the lock has been designed with an ergonomic non locking handle for emergency escape at all items (ideal for flats). The main lock bolt is automatically deadlocked when the door is closed, preventing the main bolt being retracted by a credit card, the inside handle operating the latch bolt at all times. The bolt can be held in the withdrawn position (only) with the use of the snib feature.

Features

• Yale PBS4 high security auto-deadlocking night latch.
• Complies with fire regulations for use on doors on residential emergency escape routes .
• BS8621:2007+A2:2012, BS EN 12209:2003 and BS EN 1303:2005 approved
• Approved by Secured by Design
• 6 pin cylinder included with 2 keys as standard
• Latch bolt automatically deadlocks on closing the door
• Internal escape lever handle operation from the inside
• Snib function allows the latch to be held back or deadlocked
• Suitable for use on inward opening doors only
• Choice of Polished brass lock case with brass outer cylinder or Polished chrome lock case with chrome outer cylinder.
• Backset - door edge to cylinder centre - 40mm
• Case height 90mm
• Bolt length 20mm
• Max door thickness 57mm

• Individually keyed (Standard) - locks have own keys (2 keys included per lock)
• Keyed Alike - All locks have same keys (2 keys included per lock)
