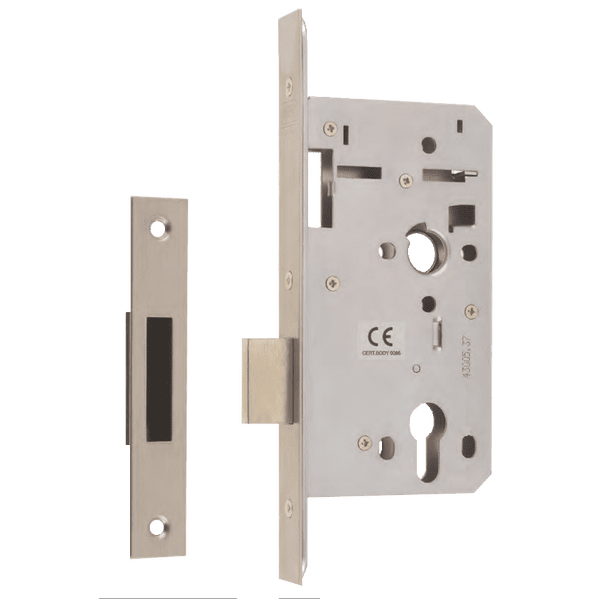

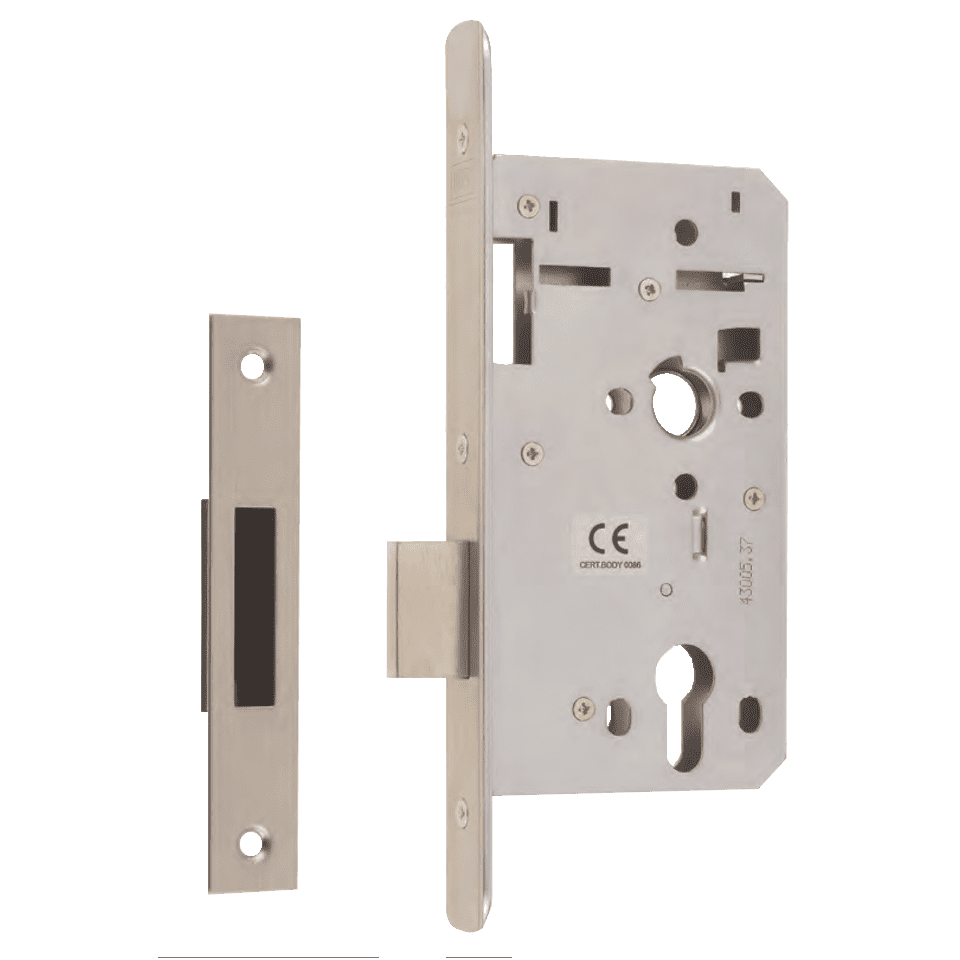

Union HD72DL DIN Dead Lock Case

Union HD72DL DIN Dead Lock Case

£12.40 £14.88 (inc. VAT)
Euro cylinder deadlock case for DIN door preparations


Union HD72DL DIN Dead Lock Case


For use in high frequency areas used by public or others with little incentive to exercise care and with a high chance of misuse.

A saving on £1.50 when ordered online!

  • European DIN style casing with 72mm centres and 60mm backset which are designed for use with Europrofile cylinders
  • 20mm Single throw deadbolt for ease of operation
  • Two piece forend provides clean aesthetics and easy maintenance
  • Splinter guard provides a professional installation


Deadlock function from the inside:
• Deadbolt locked and unlocked by operation of the cylinder key/cylinder turn
Deadlock function from the outside:
• Deadbolt locked and unlocked by operation of the cylinder key/cylinder turn

Cylinders: Euro profile, single, double or cylinder and thumbturn
Fixings: Accepts bolt through escutcheons/accesories with 38mm centres

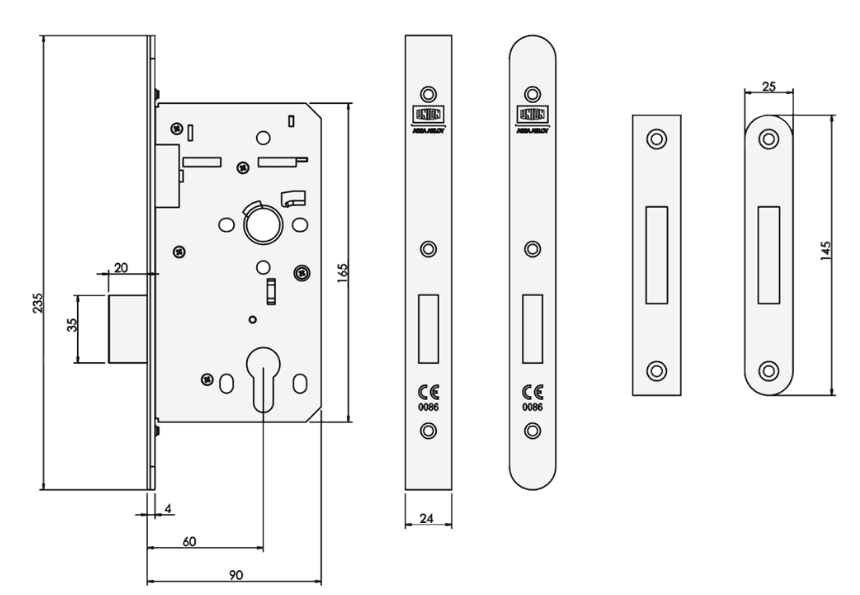

Backset: 60mm
Lockcase total depth into door: 90mm
Height: 165mm
Lockcase Thickness: 16mm
Inner Forend: Radius
Outer forend/Strike: Choice of radius or square
Forend size: 235mm (L) x 24mm (W)
Deadbolt throw: 20mm single throw
Deadbolt material: Steel chrome plated
Case material: Heavy duty mild steel enclosed case Silver finish
Faceplate & strike material: Grade 304 Satin Stainless Steel
Splinter box: Black plastic


 Tested to BS EN12209
CE Marked and fully tested to EN 12209 2003 Grade 3 category of use: High frequency of use by public or others (i.e. members of the public, students and employees etc.) with little incentive to exercise care
CE Marked, Suitable for use on fire doors

  • Tested to EN 1634-1 2014 on 30 and 60 minute timber fire doors and 240 minute metal fire doors
  • For 30 and 60 min fire doors use 1mm interdens behind the strike plate and 2mm interdens around the lockcase

Certifire approved: CF5543

BS EN 12209 Classification: 3X810G3BA00

BS EN 12209 CE Cert No: 0086-CPR-658466

15 year guarantee: The performance of the HD72 is supported by a 15 year guarantee
