Mortice Nightlatches

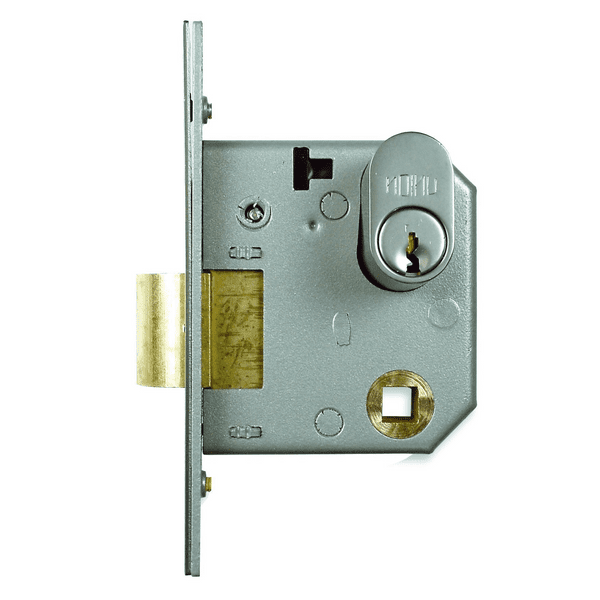

UNION 2332 Mortice Nightlatch
Application
- For timber doors hinged on the left or right
- Also suitable for steel & composite doors - special fixings required
- Complete lock supplied with 2x1 single (half) oval profile cylinder, flat escutcheon plate, 5203 thumb turn and strike plate.
- Case only option includes strike plate
Specification
- Latch bolt withdrawn by cylinder key from outside or 5203 turn inside
- Latch bolt can be held in the withdrawn position by use of the snib in the forend
- Not suitable for use with unsprung lever handles
- Reversible latch bolt
- Available with square forend and striking plate
- Case Size: 65mm (2.5") or 77.5mm (3")
- Backset (door edge to handle centre): 47.5mm or 60mm
- Case: Steel, silver powder coat
- Outer Forend: Stainless steel or brass
- Striking Plate: Finished to match forend
- Rebate Kit to suite (available separately) : 2992 (13mm, 19mm or 25mm)
- 5203 inner turn (included with complete lock option):
- 44.5mm diameter
- 20mm projection
- 7.6mm square steel spindle
- Solid brass construction
- Available in SC (satin chrome) and PL (polished brass finishes)
- 10 year guarantee
-
Brand:Union
-
MPN:2332
-
GTIN:5011802012134
-
Price:62.28 GBP
-
SKU:20350504
-
Condition:New
-
Product Code:2332
-
Weight:0.68kg
