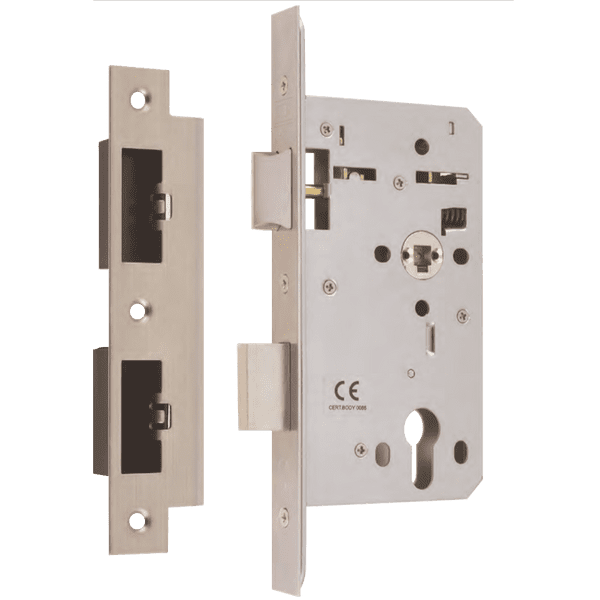

Union HD72ESL DIN Emergency Escape Sashlock Case

Application

For use in high frequency areas used by public or others with little incentive to exercise care and with a high chance of misuse.

• European DIN style casing with 72mm centres and 60mm backset for use with Euro-profile cylinders
• Heavily sprung latch follower allows use of heavy unsprung door furniture (weighing up to 930g per pair). Note: For BS EN 179 compliance only J-1000RRS01 and J1000RRU01 can be used.
• Durable latch follower technology successfully cycle tested to 3.5 million operations
• 20mm Single throw deadbolt for ease of operation
• Quick reversible latch allows easy on-site handing
• Cylinder to latch functionality
• Spindle grip feature reduces rattle
• Two piece forend provides clean aesthetics and easy maintenance
• Adjustable strike to reduce door rattle
• Includes split spindle for use with all standard 8mm drive handles
• Splinter guard provides a professional installation

Specification

Escape Sashlock function from the inside:

• The latch and deadbolt are retracted simultaneously with a single operation of the lever handle
• When unlocked only the latch is retracted
• Deadbolt locked and unlocked by the cylinder key/cylinder turn
• On a second turn the cylinder will retract the latchbolt

Escape Sashlock function from the outside:

• Only the latch bolt is withdrawn by lever handle
• Deadbolt locked and unlocked by the cylinder key/cylinder turn
• On a second turn the cylinder will retract the latch head

Furniture: For use with sprung or unsprung door furniture
Compatable cylinders: All Euro profile, single, double or cylinder and thumbturn
Fixings: Accepts 38mm centre bolt through door furniture
Handing: Easily reversible for left and right hand

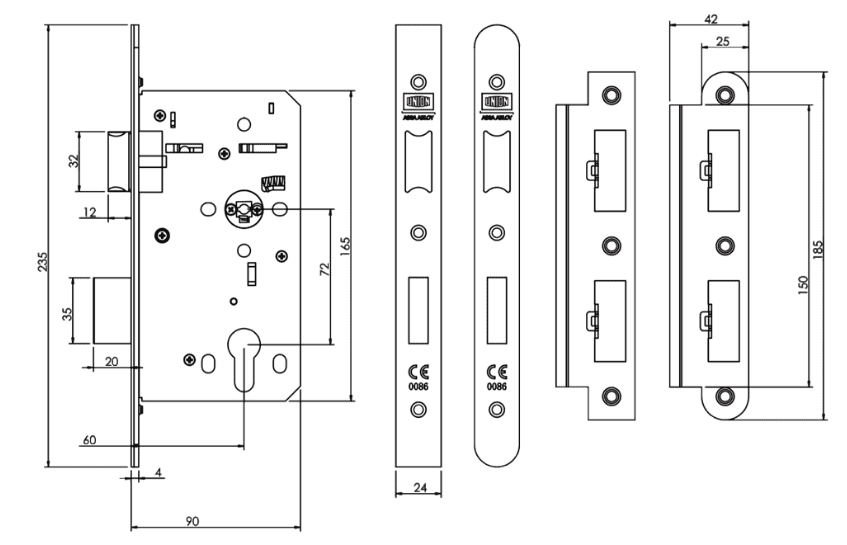

Backset: 60mm
Follower: 8mm reversible split follower, supplied complete with split spindle
Lockcase depth: 90mm
Lockcase Height: 165mm
Lockcase Thickness: 16mm
Centre Distance: 72mm
Inner Forend: Radius
Outer forend/Strike: Choice of Radius or square
Forend size: 235mm (L) x 24mm (W)
Deadbolt throw: 20mm single throw
Latch & Deadbolt material: Steel chrome plated
Case material: Heavy duty mild steel enclosed case. Silver finish
Faceplate & Strike material: Grade 304 Satin Stainless Steel
Splinter box: Black plastic


Standards

Tested to BS EN12209
CE Marked and fully tested to EN 12209 2003 Grade 3 category of use: High frequency of use by public or others (i.e. members of the public, students and employees etc.) with little incentive to exercise care

CE Marked, Suitable for use on fire doors

• Tested to EN 1634-1 2014 on 30 and 60 minute timber fire doors and 240 minute metal fire doors
• Certifire approved: CF5543
• BS EN 12209 Classification : 3X810G3BA20
• BS EN 12209 CE Cert No: 0086-CPR-670621
• BS EN 179 Classification* : 376B1342A B/D
• BS EN 179 CE Cert No*: 0086-CPR-658455

* For BS EN 179: 2008 compliance the lock must be fitted with a J-1000RRU01SS or J-1000RRS01SS furniture

15 year guarantee: The performance of the HD72 is supported by a 15 year guarantee
Equality Act: The dimensions of the lock case assist in fulfilling requirements and duties required under the Equality Act by satisfying the recommendations of BS 8300 2009 and Approved Document M 2015 (2016)
