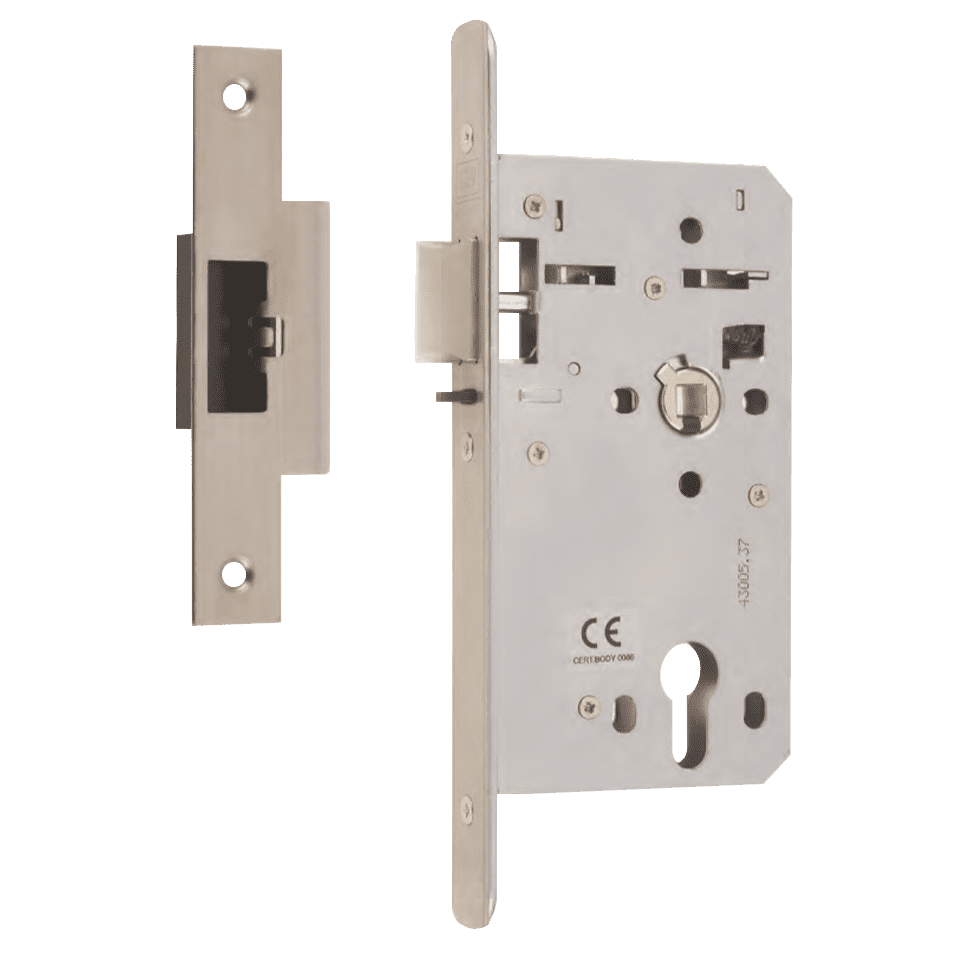

Union  HD72DNL DIN Mortice Nightlatch Case

Application

For use in high frequency areas used by public or others with little incentive to exercise care and with a high chance of misuse.

• European DIN style casing with 72mm centres and 60mm backset for use with Euro-profile cylinders
• Heavily sprung latch follower allows use of heavy unsprung door furniture (weighing up to 930g per pair)
• Durable latch follower technology successfully cycle tested to 3.5 million operations
• Quick reversible latch allows easy on-site handing
• Cylinder to latch functionality
• Spindle grip feature reduces rattle
• Two piece forend provides clean aesthetics and easy maintenance
• Adjustable strike to reduce door rattle
• Splinter guard provides a professional installation

Specification

Deadlocking Nightlatch function from the inside:

• Latch bolt withdrawn by either the lever handle or the cylinder key/turn
• When the door closes and the snib comes into contact with the strike the latch is deadlocked

Deadlocking Nightlatch function from the outside:

• Latch bolt withdrawn by the cylinder key to unlock the door
• When the door closes and the snib comes into contact with the strike the latch is deadlocked and a key must be used for re-entry
• NOTE: No lever handles are used on the outside. Use a pull handle or cylinder pull

Furniture: For use with sprung or unsprung door furniture
Compatable cylinders: All Euro profile, single, double or cylinder and thumbturn
Fixings: Accepts 38mm centre bolt through door furniture
Handing: Easily reversible for left and right hand

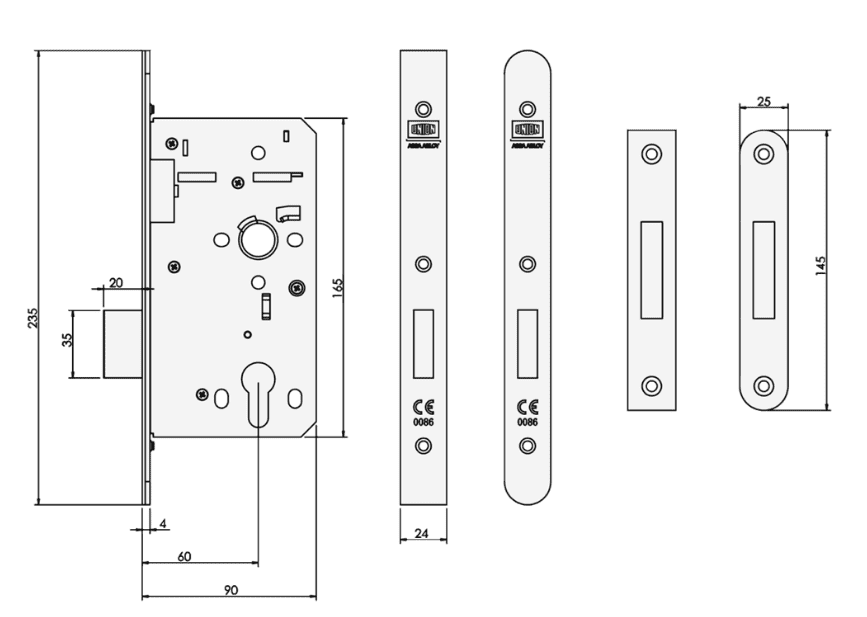

Backset: 60mm
Follower: 8mm
Lockcase depth into door: 90mm
Lockcase height: 165mm
Lockcase thickness: 16mm
Centre Distance: 72mm
Inner Forend: Radius
Outer forend/Strike: Choice of Radius or square
Forend size: 235mm (L) x 24mm (W)
Latch material: Steel chrome plated
Case material: Heavy duty mild steel enclosed case. Silver finish
Faceplate & Strike material: Grade 304 Satin Stainless Steel
Splinter box: Black plastic

Standards

Tested to BS EN12209
CE Marked and fully tested to EN 12209 2003 Grade 3 category of use: High frequency of use by public or others (i.e. members of the public, students and employees etc.) with little incentive to exercise care
CE Marked, Suitable for use on fire doors

• Tested to EN 1634-1 2014 on 30 and 60 minute timber fire doors and 240 minute metal fire doors
• Certifire approved: CF5543
• BS EN 12209 Classification: 3X810G1BB20
• BS EN 12209 CE Cert No: 0086-CPR-658456

15 year guarantee: The performance of the HD72 is supported by a 15 year guarantee
Equality Act: The dimensions of the lock case assist in fulfilling requirements and duties required under the Equality Act by satisfying the recommendations of BS 8300 2009 and Approved Document M 2015 (2016)
