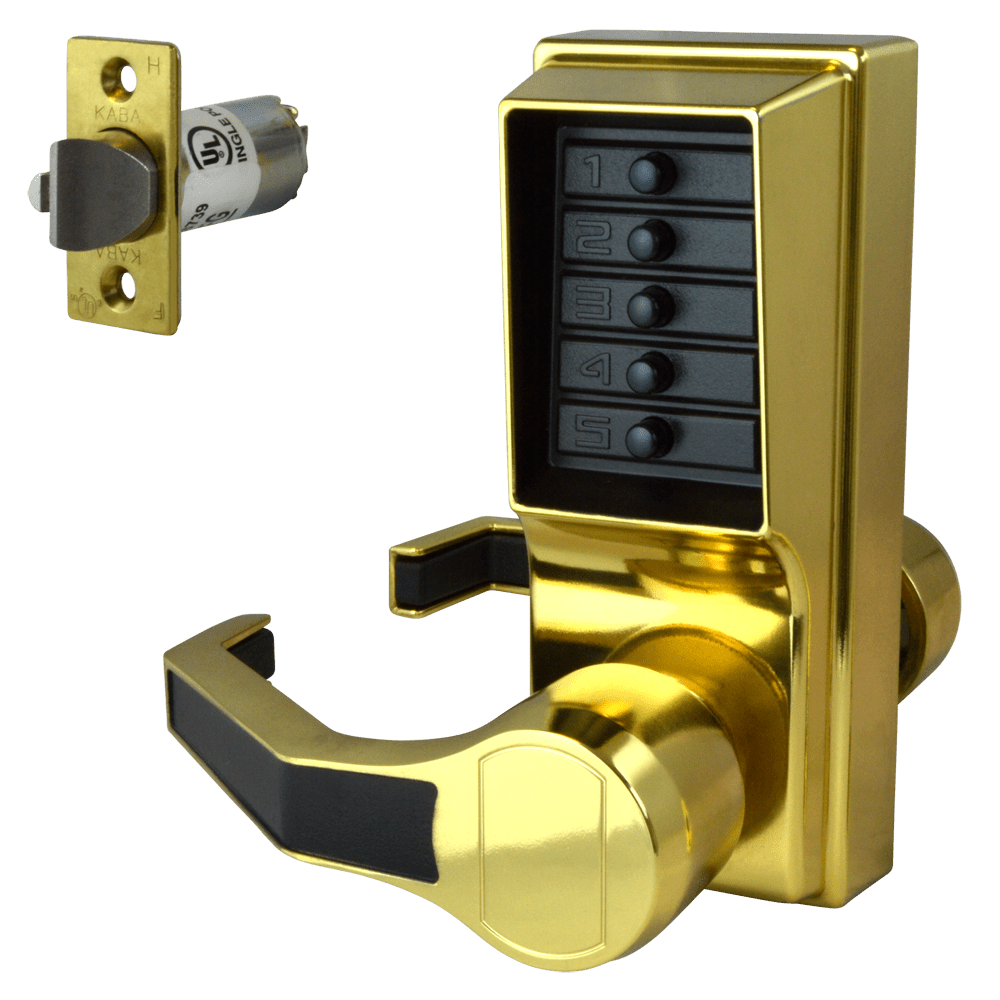

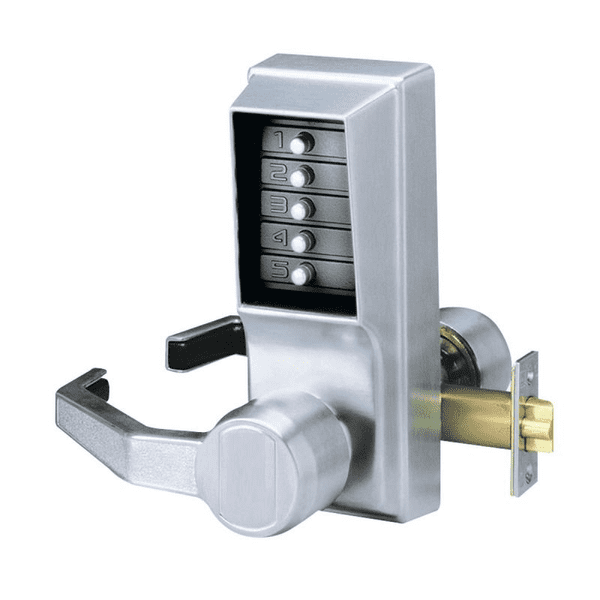

DORMA-KABA UNICAN L1011 Push Button Digital Lock

Heavy duty digital lock for high traffic applications where auto locking is required and conformity to DDA (disability discrimination act) full sized easy action levers both sides of door. Very easy upgrade for 1000 series to DDA compliance.

Operation

• Mechanical retraction of bolt upon entry of correct sequence of code. Auto re-locking on closure of door.
• Latch retracts latch when correct code is entered and lever is depressed. Free egress from inside by depressing lever.

Features

• Protected clutch mechanism to prevent forced entry
• Fast code change whilst unit fitted by authorised personnel
• Suits doors 35-57mm thick
• Heavy duty commercial & industrial lock
• Fully compliant to DDA requirements - full sized easy action levers
• 3 hour UL fire door rating
• Will replace industry standard 1011 lock to upgrade to DDA acceptance

Dimensions

• Case depth required:  115mm
• Backset (door edge to centre of  handle): 70mm
• Height:  187mm
• Width:   79mm
• Weather resistant

Online order only.

Please note:

This product requires product specific installation knowledge to ensure reliable operation - We recommend installation is carried out by a qualified professional locksmith
