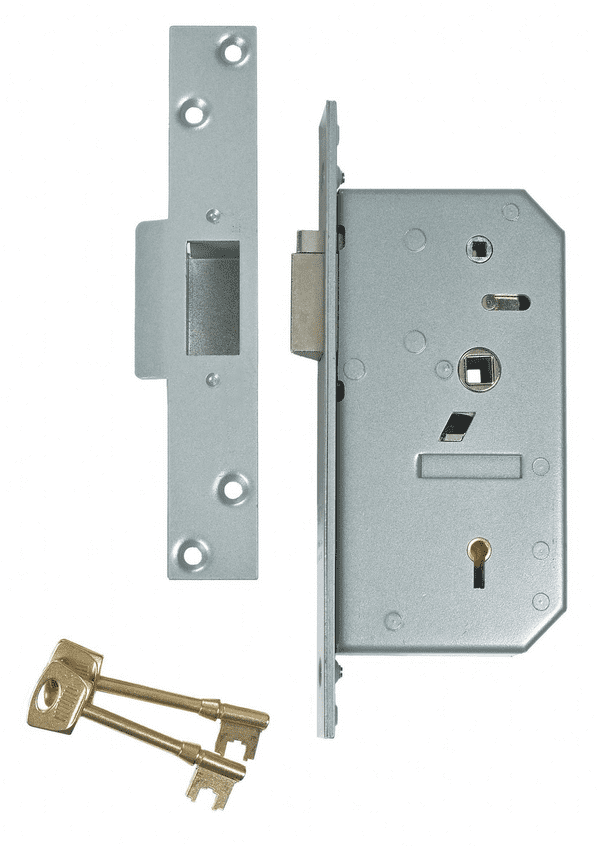

Chubb - Union 3R35X 5 Detainer Mortice Nightlatch

Chubb - Union 3R35X 5 Detainer Mortice Nightlatch

Maximum security 5 Detainer Non-deadlocking nightlatch



Chubb-Union 3R35X 5 Detainer Non-Deadlocking Nightlatch

Application
  • For timber door hinged on the left or the right where slam action is required
  • Keys are suitable for use on doors up to 50mm thick
  • Detainer style locks provide a higher number of key combinations than lever locks
  • Used on cash office doors and other high security doors requiring slam locking action combined with free exit at all times
  • Suitable for emergency exit doors requiring free exit at all times

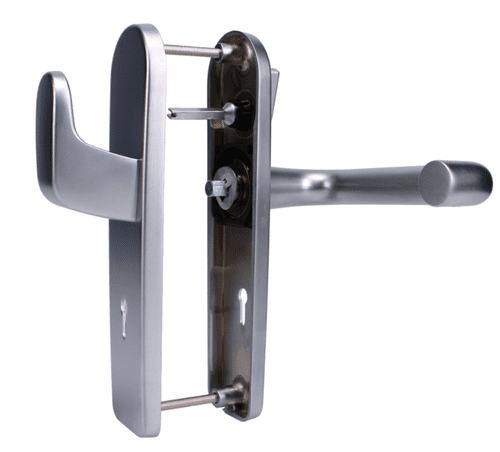

  • For use with handles ref 3R35F Sold separately (See bottom of page)
  • Single internal lever handle can be used for free key-less exit at all times
  • When closed, the door is secured by an automatic deadlocking action on the latch
  • A hold back snib can be used to keep the latch in the withdrawn position
Specification
  • Force resistant, anti-pick and anti-saw security features
  • Available with square forend and striking plate
  • 10mm latch bolt throw

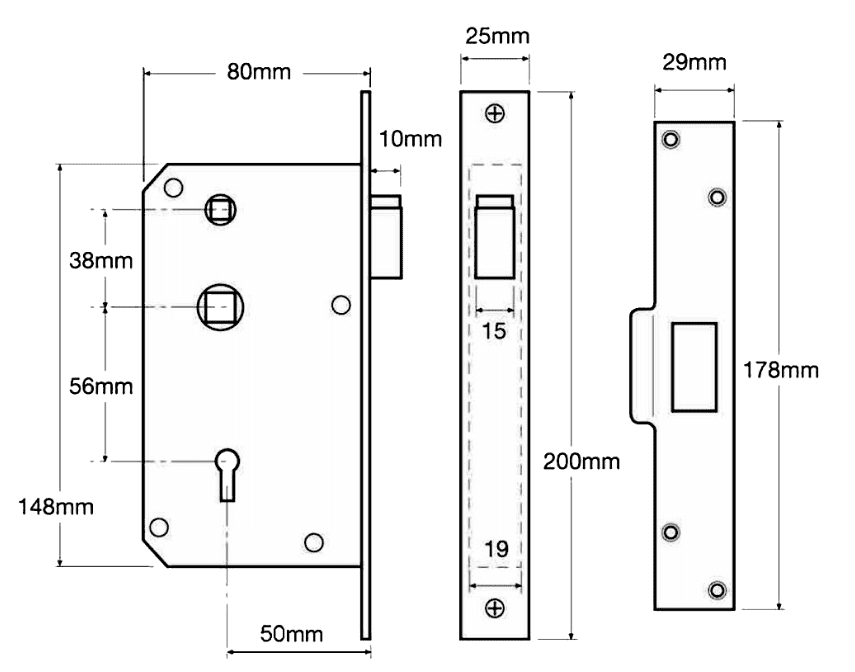

  • Case Size (depth into door): 80mm
  • Backset (door edge to keyhole): 50mm
  • Centres (between keyhole and follower centres):  56mm
  • Case: Silver powder coated
  • Forend: Stainless steel or brass
  • Box Strike Assembly: Painted to suit forend
  • Latch Bolt: Sintered iron
  • Follower: Sintered iron
  • Locks are handed - please state required handing when ordering (see handing diagram)
  • Keying Groups: Standard differ, or keyed alike to other Chubb detainer locks
  • Supplied with 2 keys as standard.
  • Finishes
  • SC - Satin Chrome finish
  • PL - Polished Brass finish
  • * Keying Options Explained
  • Individually keyed (Standard) - locks have own keys (2 keys included per lock)
  • Keyed Alike - All locks have same keys (2 keys included per lock)
  • Note: Chubb locks re branded Union from 2010




  • Brand:
    Chubb
  • MPN:
    3R35X
  • GTIN:
    5011783005224
  • Price:
    237.60 GBP
  • SKU:
    20350555
  • Condition:
    New
  • Product Code:
    3R35X
  • Weight:
    1.2kg
