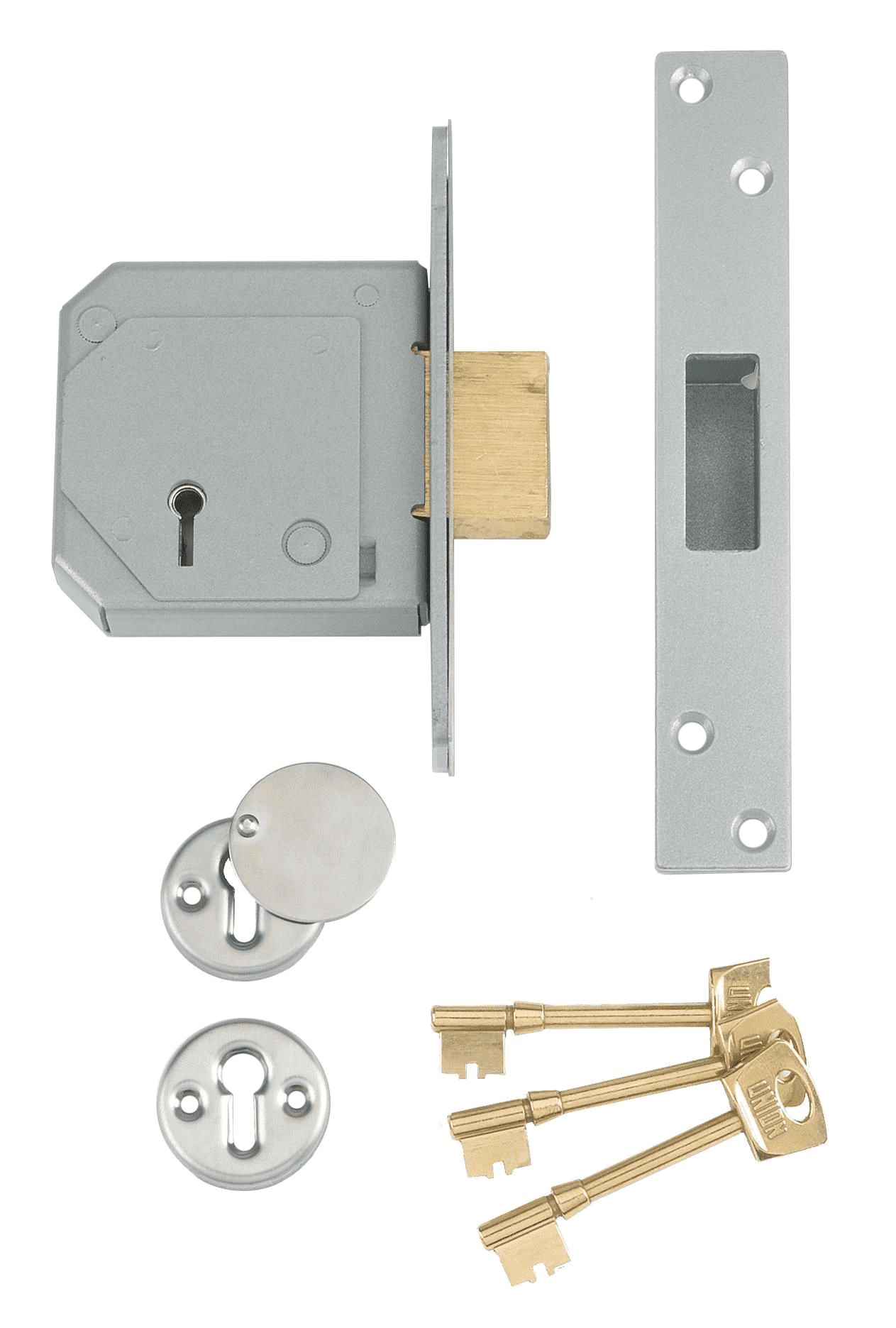

Union 3G114E BS 5 Lever Mortice Deadlock

Applications

Approved by all insurance companies and the police for use on timber perimeter doors requiring high security deadlocking.

Specification/operation

• Deadbolt is locked or unlocked by key from either side of door
• Extended 20mm deadbolt for secure positive deadlocking and resistance against attack
• Force resistant, anti drill, anti-pick and anti-saw security

Features

• Available with square forend and striking plate
• 20mm throw brass deadbolt with 2 hardened steel rollers

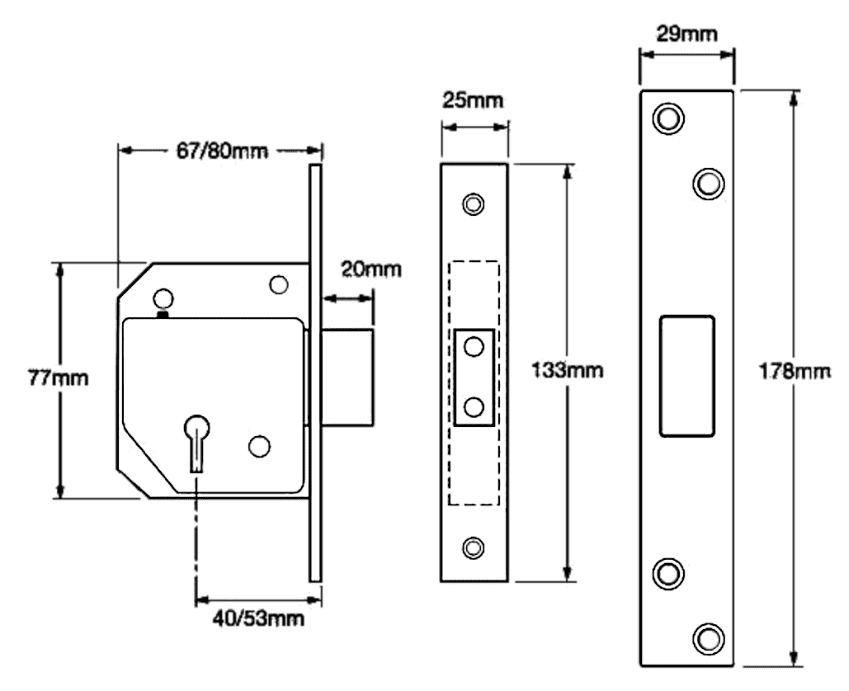

• Case Sizes (depth into door): 67mm and 80mm options
• Backsets (door edge to keyhole): 40mm or 53mm options
• Stainless steel or brass forend
• Box Strike to protect bolt
• Includes 2 x keyhole escutcheons
• 25 year manufacturers guarantee
• Also available Keyed alike -  see below
• Can be keyed alike with 3K74E Sash lock
• 3 keys included as standard for doors up to 50mm thick (2")

Finishes

Satin stainless steel or brushed brass finish options

Standards

Tested to BS3621:2007EN 1634-1 and approved for use on 60 minutes timber fire doors
