Application

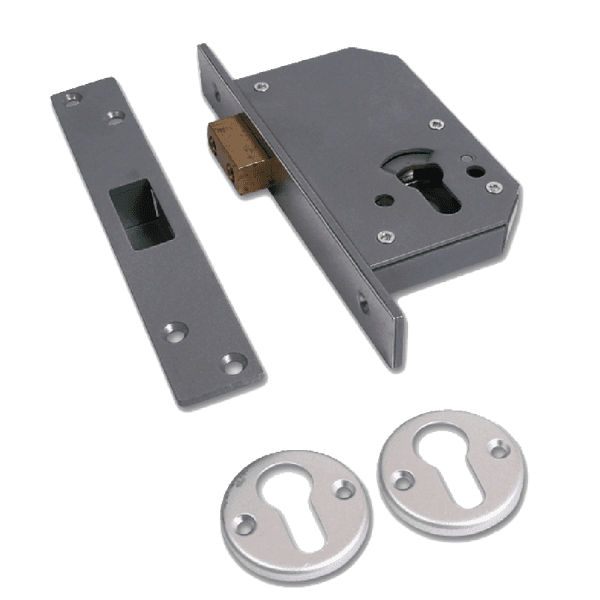

• Heavy duty euro profile cylinder deadlock case
• For timber door hinged on the left or the right
• Not suitable for use on doors less than 40mm thick

Specification

• Deadbolt is locked or unlocked by euro profile cylinder from either side
• Two independently operated levers within the case to control deadlocking of the bolt and will frustrate manipulation of the mechanism to bypass the cylinder
• Force resistant and anti-saw security features
• 14mm bolt throw
• Bolt through fixings for escutcheons at 38mm centres

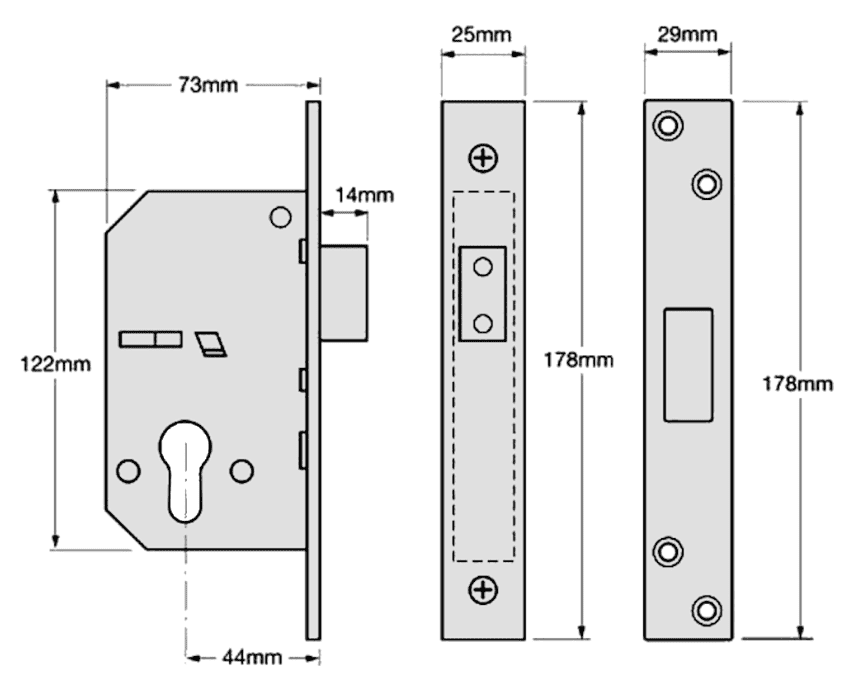

• Case Size: 73mm
• Backset:  44mm
• Case: Silver powder coat
• Forend: Stainless steel or brass
• Box Strike Assembly: Silver painted
• Deadbolt: Brass, with hardened steel rollers
• Rebate Kit: B-3G110R (13mm, 19mm and 25mm)
• Security Escutcheon to Suit: B-3C14E (sold separately)
• Available in satin chrome (SC)  or Satin Brass

Finishes available

• SC - Satin Chrome finish
• SB - Satin Brass

This product will be branded "Union" from 2010.
