The Asec Vital 5 Lever British Standard (BS) Mortice Sashlock is ideal for use on high security applications such as external stores and stores. Once installed pushing down on the door handle will retract the latch and using the key will operate the dead bolt. It comes complete with a 1 year guarantee, 3 keys and full fitting instructions.

• 1 Year Guarantee
• 5 Lever Mechanism
• 20mm throw chrome plated anti saw deadbolt
• Hardened steel anti-drill plates on lock case
• Conforms to BS EN 3621:2007 and carries Kite-Mark KM 672065 on forend plate (CEN classification 2H800F7KD2B)
• Suitable for sprung or un-sprung lever furniture with standard 8mm spindle
• Case prepared for handle on rose both-thru fixings with 40 to 50mm centres
• Easily reversible chrome plated latch bolt without stripping lock
• Available in 64mm or 76mm case depths
• Suitable for external  residential  and commercial doors
• 3 brass keys included as standard
• Keyed to differ / 1000 differs
• Also available Keyed alike
• Available in Polished Brass(PB)  or Stainless Steel (SS) finishes
• Can be keyed alike (matching keys) with Asec Vital 5 Lever Dead Locks

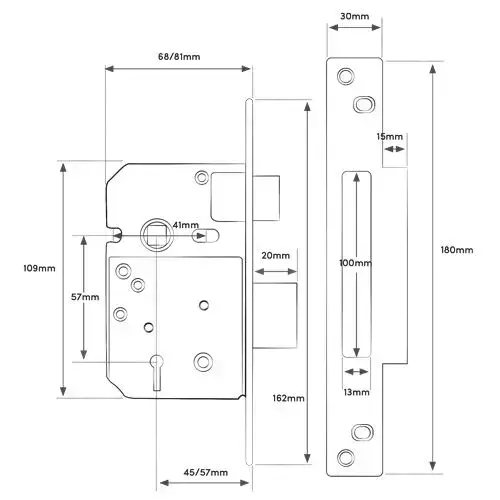

Dimensions

• Backset (door edge to keyhole): 45mm or 57mm
• Case Depth: 68mm or 81mm
• Case Height: 109mm
• Forend Length: 162mm
• Forend Width: 26mm

Strike Plate - 30mm wide x 180mm long (30mm deep bolt box)
