Abloy Cam Locks & Fittings

Sort By
Showing products 1 to 18 of 18
Abloy CL109 cam lock - 29mm Key Retaining

Key removable in locked position only

£19.00
£22.80 inc. VAT

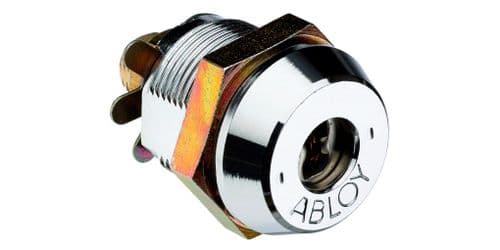

Abloy CL104 cam lock - 33mm Key Retaining

Key removable in locked position only

£17.20
£20.64 inc. VAT
Abloy CL107 cam lock - 33mm Key Removable

Key removable in locked & unlocked position

£19.70
£23.64 inc. VAT
Abloy CL100 cam lock - 37mm Key Retaining

Key removable in locked position only

£18.60
£22.32 inc. VAT
Abloy CL101 cam lock - 37mm Key Removable

Key removable in locked & unlocked position

£20.40
£24.48 inc. VAT
Abloy CL103 cam lock - 43mm Key Retaining

Key removable in locked position only

£21.00
£25.20 inc. VAT
Abloy CL106 cam lock - 43mm Key Removable

Key removable in locked & unlocked position

£25.60
£30.72 inc. VAT
Abloy Cams - Straight

Flat cam bars to suit all Abloy camlocks

£1.50
£1.80 inc. VAT
Abloy Cams - Offset

Cranked cam bars to suit all Abloy camlocks

£1.50
£1.80 inc. VAT
Abloy Cams - Hooked

Hooked cam bars to suit all Abloy camlocks

£1.50
£1.80 inc. VAT
Abloy 434613 Fitting Plate - Pair

To reduce existing door hole size

£3.00
£3.60 inc. VAT
Abloy 455328 Fitting Plate

To prevent cam lock rotation in round hole preparations

£1.50
£1.80 inc. VAT
Abloy 466091 Fitting Plate

To prevent cam lock rotation in round hole preparations

£1.50
£1.80 inc. VAT

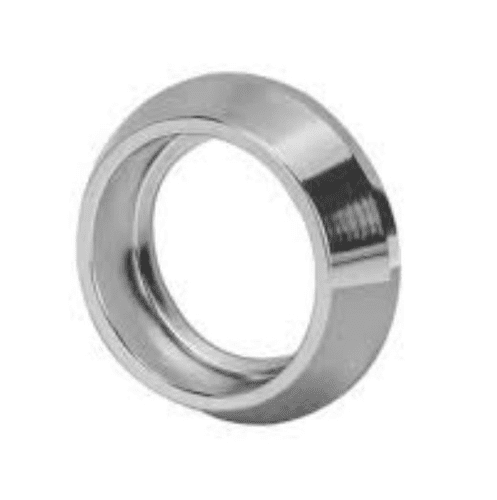

Abloy 804757 Bezel Protector

Cam lock security shroud

£5.50
£6.60 inc. VAT
Abloy 901435 Fitting Plate

To reduce existing hole size & repair plate

£1.50
£1.80 inc. VAT

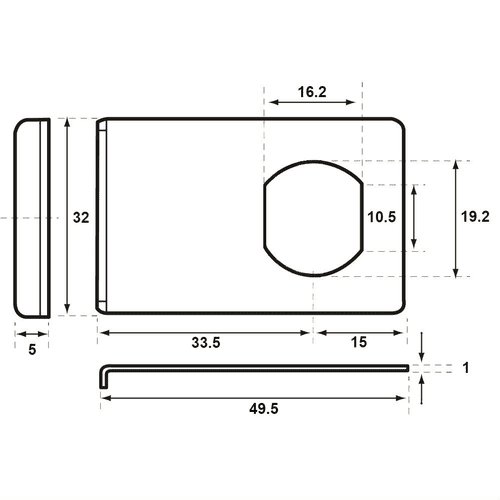

Abloy GL1 Glass Fitting Plate

Use with Abloy camlocks on glass doors

£8.70
£10.44 inc. VAT

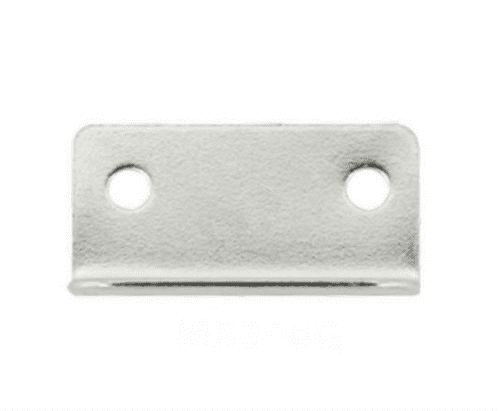

Abloy 434965 Strike Plates

Angled fixed strikes

£1.50
£1.80 inc. VAT

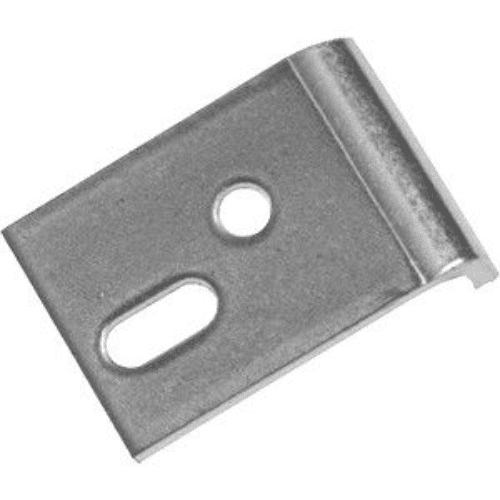

Abloy 455365 Strike Plates - Adjustable

Easy fix adjustable strikes

£1.50
£1.80 inc. VAT

The ABLOY range of world renowned high quality security cam locks - available in various body lengths to suit door thicknesses in key retaining (key removable in locked position only) or key removable in locked and unlocked positions.

All models include Sentry Patented key protection, to eliminate the risk of unauthorised key duplication.

Please note: cams and fitting plates are ordered separately.





Specification CL109 CL104 CL107 CL100 CL101 CL103 CL106
Length (A) 29 33 33 37 37 43 43
Max door thickness (B) 5.5 9.5 9.5 13.5 13.5 19.5 19.5
Cam distance (C) 14.5 18.5 18.5 22.5 22.5 28.5 28.5
Collar (D) 6.5 6.5 6.5 6.5 6.5 6.5 6.5
No of discs 7 9 9 11 11 11 11
Key removable locked position only * * * *
Key removable locked & unlocked * * *
Cam Turns (degree rotation)
90 degrees * * * *
180 degrees * * * *
360 degrees * * *
